EJOT Structur Parts

IND-Produktbilder-KST-Strukturbauteile-EJOT

Specification

Overview

Cost and time savings through 100% digital development:
- Design Optimization
- Fill simulation in Moldex 3D
- Warpage simulation
- FEM calculation
- tool design

Downloads

CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT^®, SHEETtracs^® and ALtracs^® Plus.

Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.

CAD & more

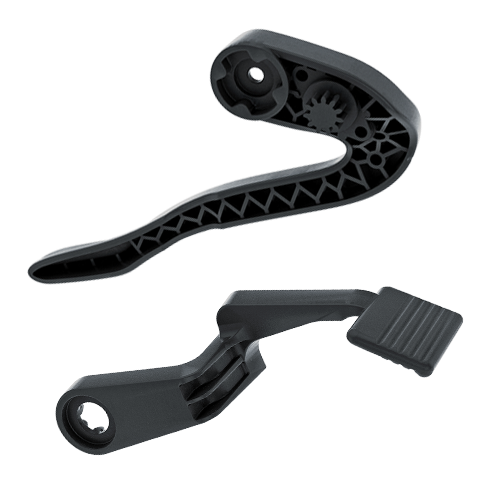

Heavy-duty structural component

Thanks to state-of-the-art plant technology and years of know-how, structural components from EJOT, designed to meet customer-specific requirements, meet the highest demands in terms of tight tolerances, dimensional stability, resistance and appearance.

Digital Development

Digital product development is global at EJOT.
The global locations are networked to optimally handle global projects from development to series production. This is done in close collaboration with the customer and saves both time and costs.

3D CAD article and tool design (VISI-CAD)
Injection Molding Simulation (Moldex3D)
DoE statistical experiment planning (JMP)
Additive Manufacturing (HP Designjet 3D printer)Existing network to university institutes, research institutions and internal engineering service providers
In-house FEM calculation (ANSYS)
High-performance partners in toolmaking (rapid tooling)
Many years of automotive project experience in an international environment
